Description

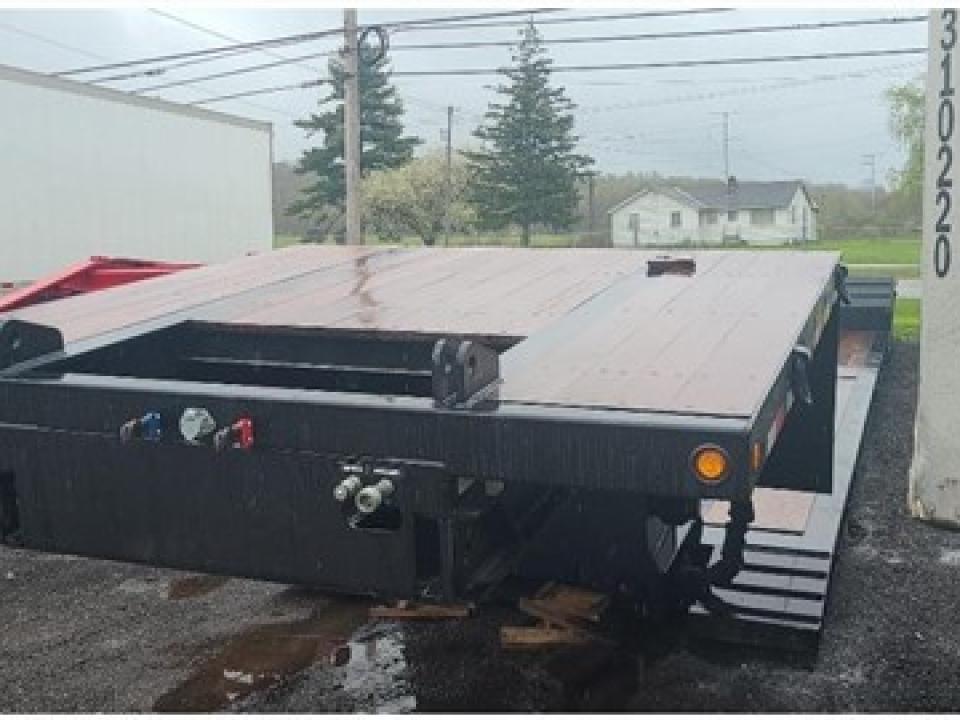

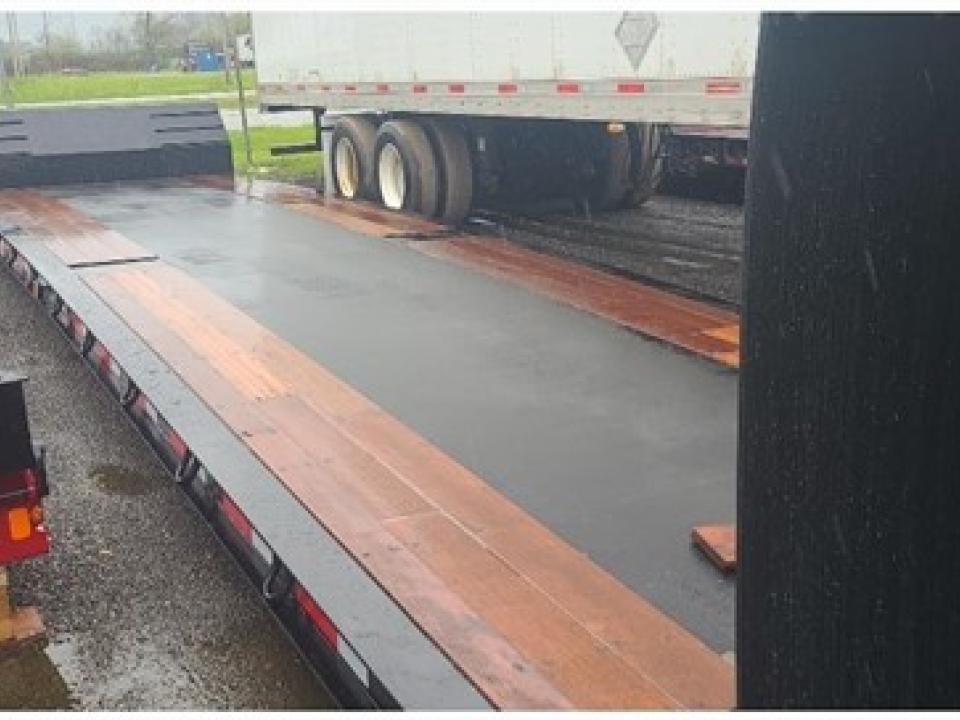

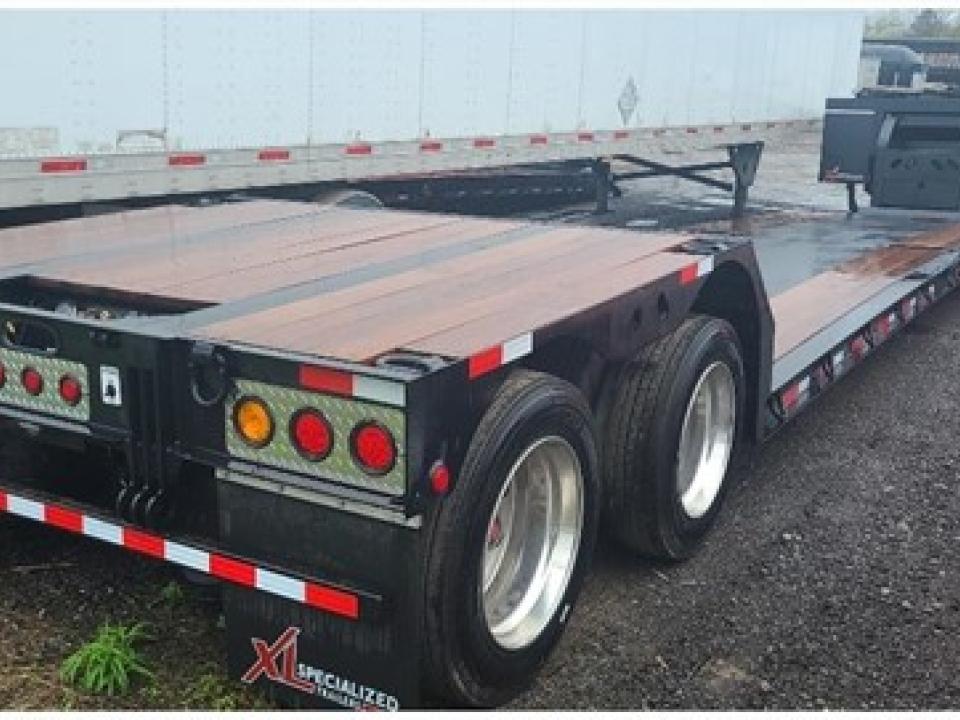

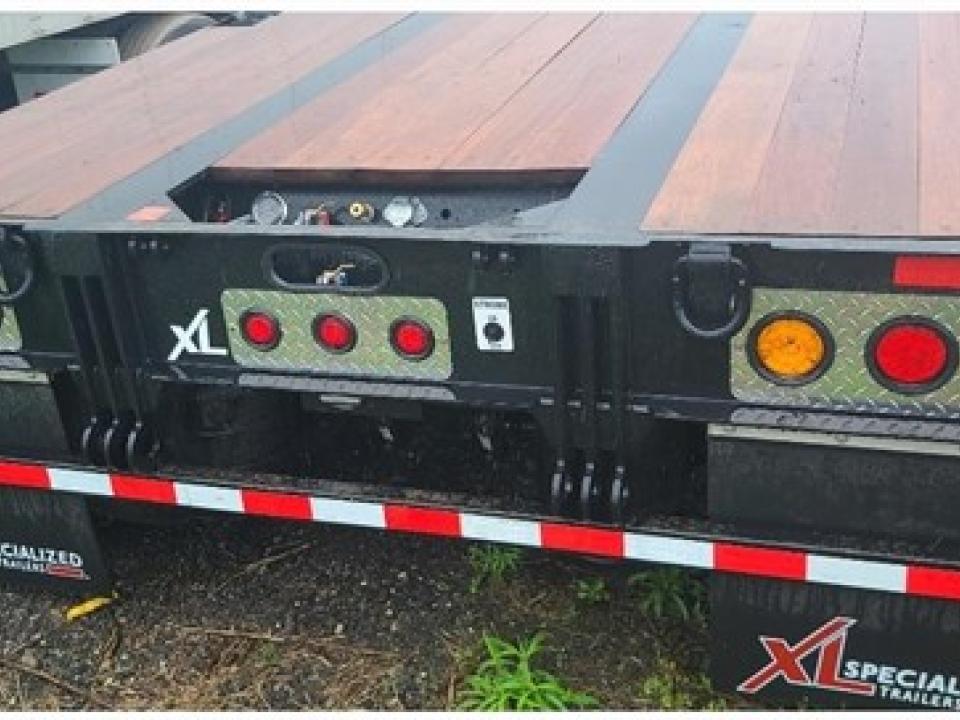

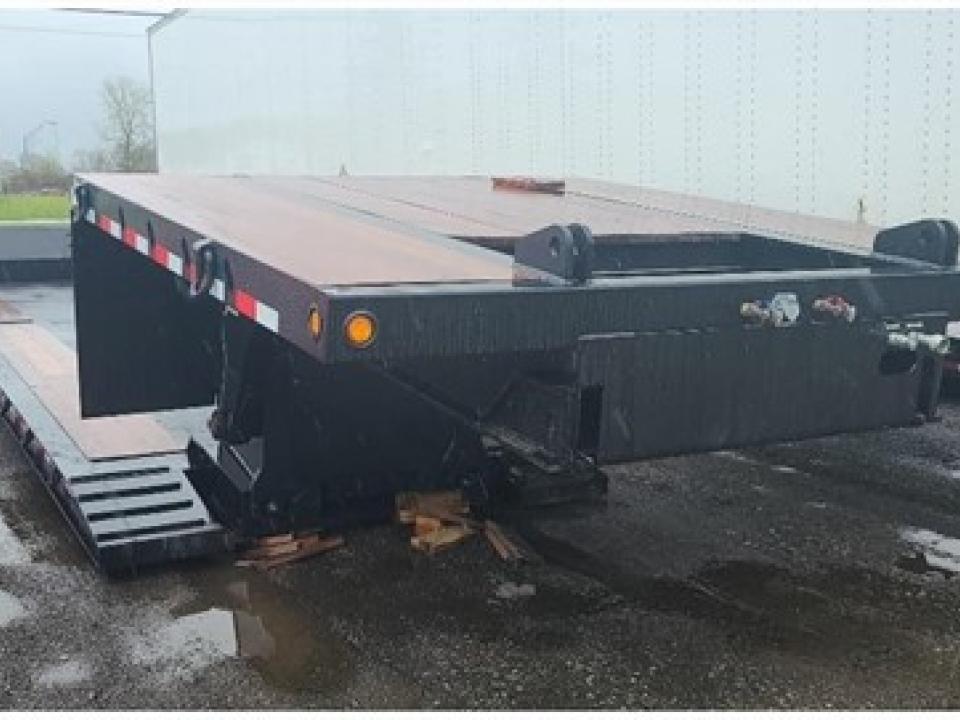

40 Ton Full Width Hydraulic Neck Wet Line Operated Mini Deck. Trailer comes with the XL Specialized Classic Style Neck which has 7 Ride Height Positions and More Stroke compared to the standard Scraper Style Gooseneck. Length 53' Width 102" Top Deck Length 10' 5" Classic Neck, Full Width Neck Main Deck Length 33' 7" with 32' 11" Clear Deck Main Deck Height 12" with 4" ground clearance Rear Deck Length 9' Unit Description 40 Ton Hydraulic Mini Deck Compatibility Flip Axle Connections at Rear Floor Apitong Side Rail Perimiter Beam - Steel D-Rings 15 Pair Strobe Lights Yes with battery back up Flag Holders One (1) Pair Rear Bogie Covered with 1 1/8" Apitong Decking Flush Gooseneck Hydraulic Detachable, Non-Ground Bearing # of Axles 2 Suspension Type Air Ride Suspension Brand Hendrickson Suspension Setting 54" axle spacing Raise & Lower Valve Yes Tire Size 255/70R22.5 Wheels Aluminum/Steel Liquid Filled Gauge Yes King Pin Setting 16" Cross Member Center 12" centers Paint Black Weight Ratings 40 Ton 84" Swing Clearance 49" 5th Wheel Height with 5 variable ride height adjustments Full Width Neck with 1 1/8" Apitong Decking, Flush Steel decking between main beams with Durabak Manual Ride Height Control Valve 4 way plug at rear Provisions for 3rd axle flip
